BČK {БЧК}

Leningrad Kozitsky Works

  • Year
  • 1928
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 90723
    • alternative name: Radiotelegraf Works

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage

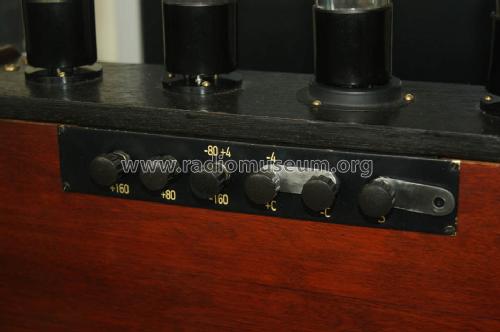

  • Storage and/or dry batteries / 4-5/80/160 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: BČK {БЧК} - Leningrad Kozitsky Works
  • Shape

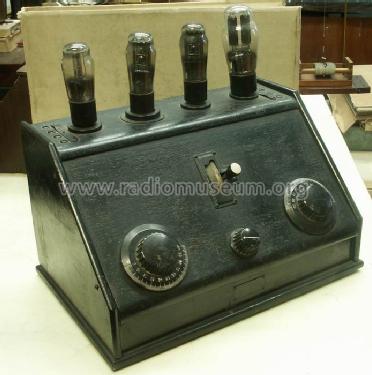

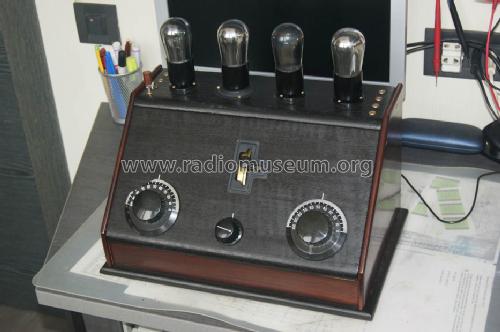

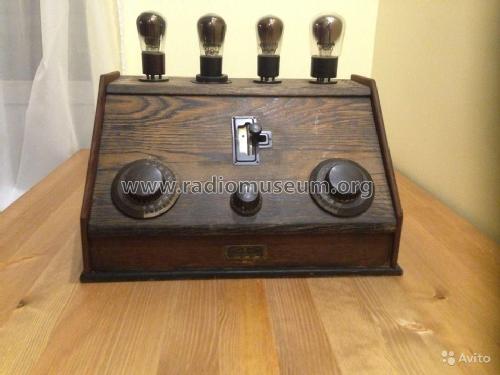

  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 400 x 200 x 210 mm / 15.7 x 7.9 x 8.3 inch
  • Notes
  • Designed by the Russian engineer Borusevich.

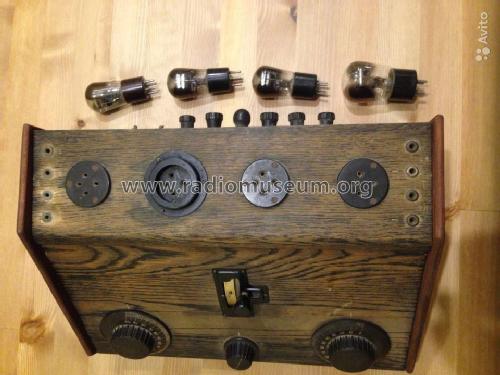

    Some tube variants: tube1(2)usable pt-2 or ub-107 or ub-110, tube3 usable pt-2 or ub-107, tube3 pt-2 or ub-132.
    Coverage 300-1850 meters in 4 ranges.
  • Source of data
  • -- Collector info (Sammler)
  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
