BČZ {БЧЗ}

BČZ {БЧЗ}; Leningrad Kozitsky (ID = 177478) Radio

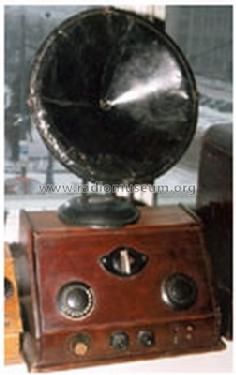

BČZ {БЧЗ}; Leningrad Kozitsky (ID = 177475) Radio BČZ {БЧЗ}; Leningrad Kozitsky (ID = 177476) Radio

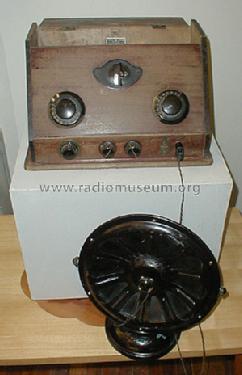

BČZ {БЧЗ}; Leningrad Kozitsky (ID = 177477) Radio
Use red slider bar for more.
BČZ {БЧЗ}; Leningrad Kozitsky (ID = 177475) Radio
Leningrad Kozitsky: BČZ {БЧЗ} [Radio] ID = 177475 416x350
Select picture or schematic to display from thumbnails on the right and click for download.
For model BČZ {БЧЗ}, Leningrad Kozitsky Works:
Thanks to D.Gurjanov, Russia

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: УБ-110 УБ-110 УБ-107 УБ-132
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4-5/80/160 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: BČZ {БЧЗ} - Leningrad Kozitsky Works
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 400 x 200 x 210 mm / 15.7 x 7.9 x 8.3 inch
Notes Constructor - russian engineer Borusevich.
Some tube variants: tube1(2)usable pt-2 or ub-107 or ub-110, tube3 usable pt-2 or ub-107, tube3 pt-2 or ub-132.
Coverage 300-1850 meters in 4 ranges.
Source of data -- Schematic
Mentioned in -- Collector info (Sammler)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
