BŠ {БШ}

BŠ {БШ}; Leningrad Kozitsky (ID = 178100) Radio

BŠ {БШ}; Leningrad Kozitsky (ID = 178101) Radio

BŠ {БШ}; Leningrad Kozitsky (ID = 671772) Radio
BŠ {БШ}; Leningrad Kozitsky (ID = 178099) Radio BŠ {БШ}; Leningrad Kozitsky (ID = 671770) Radio
Use red slider bar for more.
BŠ {БШ}; Leningrad Kozitsky (ID = 178099) Radio
Leningrad Kozitsky: BŠ {БШ} [Radio] ID = 178099 350x211
Select picture or schematic to display from thumbnails on the right and click for download.
For model BŠ {БШ}, Leningrad Kozitsky Works:
Radio set "BSH" without case and tubes. Thanks for Valery Charcenko, Russia

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ПТ-2 ПТ-2 ПТ-2 ПТ-2 ПТ-2 ПТ-2
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4-5/80/160 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: BŠ {БШ} - Leningrad Kozitsky Works
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 600 x 200 x 350 mm / 23.6 x 7.9 x 13.8 inch
Notes Designed by the Russian engineer Borusevich.
Coverage 300-1800 meters in 2 ranges.
Source of data -- Collector info (Sammler)

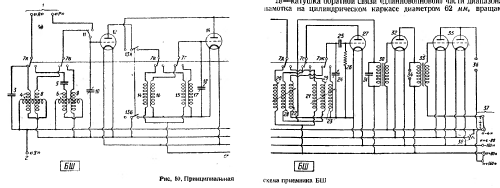

Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
