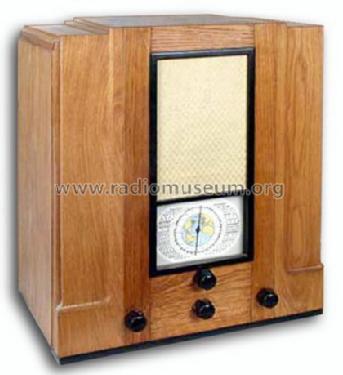

Leningrad Kozitsky: CRL-10 {ЦРЛ-10} CRL-10K {ЦРЛ-10К} [Radio] ID = 182352 421x459
Select picture or schematic to display from thumbnails on the right and click for download.
For model CRL-10 {ЦРЛ-10} CRL-10K {ЦРЛ-10К}, Leningrad Kozitsky Works:
Thanks for Valery Charcenko, Russia

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: СО-183 СО-182 СО-193 СО-187 ВО-116
Main principle Super-Heterodyne (Super in general); ZF/IF 110 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: CRL-10 {ЦРЛ-10} CRL-10K {ЦРЛ-10К} - Leningrad Kozitsky Works
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 510 x 420 x 260 mm / 20.1 x 16.5 x 10.2 inch
Notes

MW 230-575 m., LW 740-1900 m., SW 16 - 46 m.

Model CRL-10 - only MW and LW; CRL-10K - LW, MW and SW.

Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)
Source of data -- Collector info (Sammler)

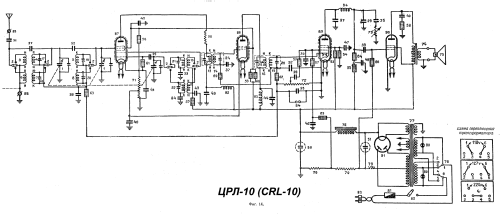

Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Leningrad Kozitsky Works
Here you find 70 models, 61 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
