Hmell R-671 {Р-671}

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315547) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315548) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315549) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315550) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315551) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315552) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315553) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315555) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315556) Receiver-C

Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 315557) Receiver-C
Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 101239) Receiver-C Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 101240) Receiver-C
Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 102112) Receiver-C Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 102113) Receiver-C
Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 102114) Receiver-C Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 102262) Receiver-C
Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 103304) Receiver-C Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 103305) Receiver-C
Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 105317) Receiver-C Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 105319) Receiver-C
Use red slider bar for more.
Hmell R-671 {Р-671}; Leningrad Kozitsky (ID = 101239) Receiver-C
Leningrad Kozitsky: Hmell R-671 {Р-671} [Receiver-C] ID = 101239 640x505
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hmell R-671 {Р-671}, Leningrad Kozitsky Works:
Own set before restauration, picture from Atis Brikmanis

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1951–1960 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 11:
Main principle Superhet with RF-stage
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit. / 90-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Hmell R-671 {Р-671} - Leningrad Kozitsky Works
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 317 x 360 x 485 mm / 12.5 x 14.2 x 19.1 inch

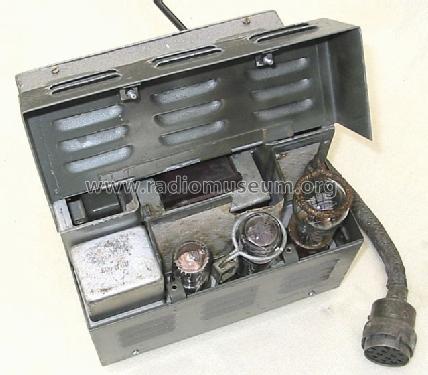

Notes AM/CW receiver for naval applications. Coverage 1.5 to 25 MHz in five ranges, IF bandwidths 2.5 and 7.5 kHz, four xtal-controlled fix-fequencies possible. Needs separate power-supply (size 290 x 230 x 242 mm, weight 15 kg). 3000 sets were made.
Net weight (2.2 lb = 1 kg) 58.5 kg / 128 lb 13.7 oz (128.855 lb)
External source of data William L. Howard, Largo
Mentioned in V.I. Shapkin, Krasnyje ushy (The Red Ears), Moscow 2003

Model page created by a member from D. See "Data change" for further contributors.
