KUB-4 {КУБ-4}

KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 672065) Radio

KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 672066) Radio

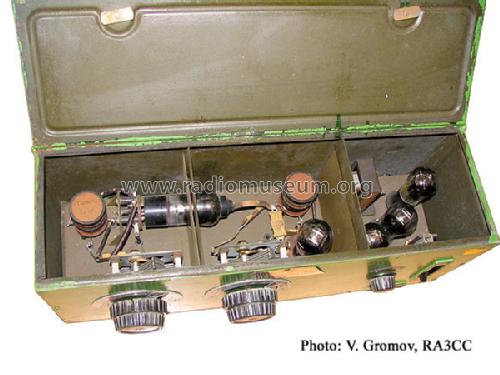

KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 723722) Radio KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 723725) Radio
KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 723723) Radio KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 672067) Radio
KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 672068) Radio KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 723724) Radio
KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 723726) Radio
Use red slider bar for more.

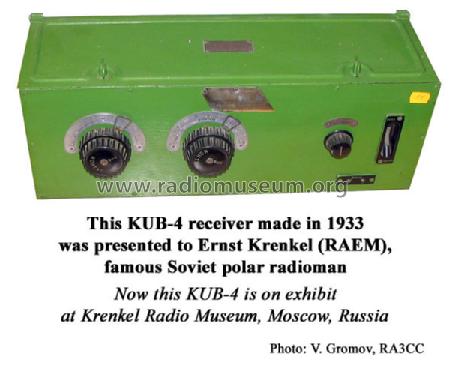

KUB-4 {КУБ-4}; Leningrad Kozitsky (ID = 723722) Radio
Leningrad Kozitsky: KUB-4 {КУБ-4} [Radio] ID = 723722 600x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model KUB-4 {КУБ-4}, Leningrad Kozitsky Works:
RKK Radio Museum for RMorg

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1930–1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: СБ-112 or СБ-147 УБ-107 or УБ-110 УБ-107 or УБ-110 УБ-107 or УБ-110 УБ-107 or УБ-110
Main principle TRF with regeneration
Wave bands Short Wave (SW only)
Details
Power type and voltage Dry Batteries / 120 & 40 & 4 & 2 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: KUB-4 {КУБ-4} - Leningrad Kozitsky Works
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 180 x 143 mm / 19.7 x 7.1 x 5.6 inch
Notes Coverage 12 - 200 m wave band in four ranges (change coils).
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Mentioned in R. Malinin "Radio sets" 1937, Moscow

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
