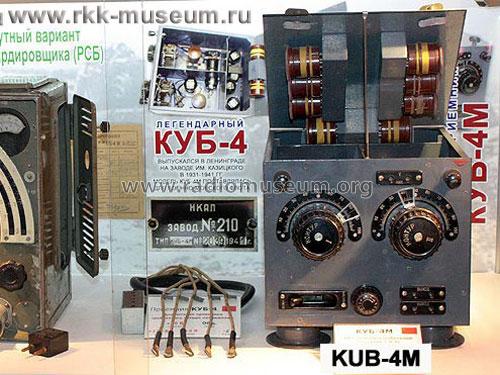

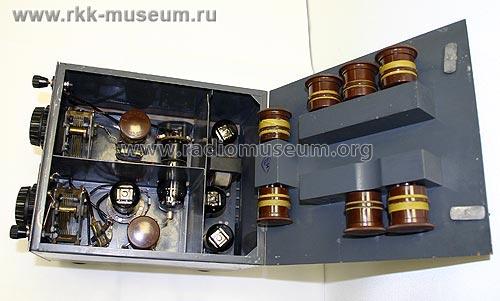

KUB-4M {КУБ-4М} Soviet Navy Receiver

KUB-4M {КУБ-4М} Soviet Navy Receiver; Leningrad Kozitsky (ID = 724190) Military KUB-4M {КУБ-4М} Soviet Navy Receiver; Leningrad Kozitsky (ID = 724192) Military
KUB-4M {КУБ-4М} Soviet Navy Receiver; Leningrad Kozitsky (ID = 724193) Military KUB-4M {КУБ-4М} Soviet Navy Receiver; Leningrad Kozitsky (ID = 724195) Military
KUB-4M {КУБ-4М} Soviet Navy Receiver; Leningrad Kozitsky (ID = 724196) Military KUB-4M {КУБ-4М} Soviet Navy Receiver; Leningrad Kozitsky (ID = 724197) Military
Use red slider bar for more.
KUB-4M {КУБ-4М} Soviet Navy Receiver; Leningrad Kozitsky (ID = 724190) Military
Leningrad Kozitsky: KUB-4M {КУБ-4М} Soviet Navy Receiver [Military] ID = 724190 454x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model KUB-4M {КУБ-4М} Soviet Navy Receiver, Leningrad Kozitsky Works

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1938–1941 Category: Military Equipment
Valves / Tubes 5: СБ-112 or СБ-147 УБ-107 or УБ-110 УБ-107 or УБ-110 УБ-107 or УБ-110 УБ-107 or УБ-110
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 120 & 40 & -2 & 4 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: KUB-4M {КУБ-4М} Soviet Navy Receiver - Leningrad Kozitsky Works
Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 240 x 200 x 285 mm / 9.4 x 7.9 x 11.2 inch
Notes Naval version of KUB-4 TRF receiver. Same schematic diagram. AM and CW. Frequency coverage 1.5 to 25 MHz in five bands. Band change by manual replacement of two coils located deep inside receiver cabinet. Manufactured for smaller USSR Navy vessels till June, 1941.

Model page created by Valery Gromov. See "Data change" for further contributors.



All listed radios etc. from Leningrad Kozitsky Works
Here you find 70 models, 61 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
