L5 {Л5}

L5 {Л5}; Leningrad Kozitsky (ID = 734195) Military L5 {Л5}; Leningrad Kozitsky (ID = 734197) Military
L5 {Л5}; Leningrad Kozitsky (ID = 734198) Military L5 {Л5}; Leningrad Kozitsky (ID = 734199) Military
L5 {Л5}; Leningrad Kozitsky (ID = 734200) Military L5 {Л5}; Leningrad Kozitsky (ID = 734201) Military
L5 {Л5}; Leningrad Kozitsky (ID = 734202) Military L5 {Л5}; Leningrad Kozitsky (ID = 734203) Military
Use red slider bar for more.
L5 {Л5}; Leningrad Kozitsky (ID = 734195) Military

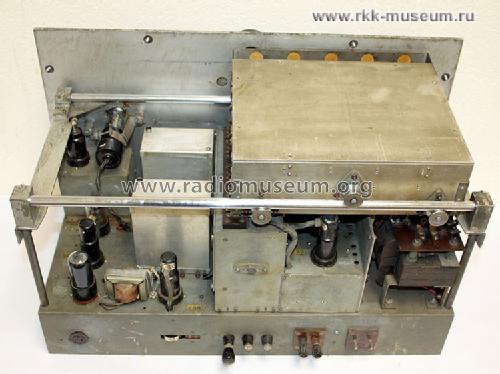

Leningrad Kozitsky: L5 {Л5} [Military] ID = 734195 750x568
Select picture or schematic to display from thumbnails on the right and click for download.
For model L5 {Л5}, Leningrad Kozitsky Works

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1938/1939 Category: Military Equipment
Valves / Tubes 11: 6К7 6К7 6Л7 6С5 6К7 6К7 6Х6 6Е5 6К7 6Ф5 6Ф6
Main principle Super-Heterodyne (Super in general); ZF/IF 500 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out 1 W (unknown quality)
from Radiomuseum.org Model: L5 {Л5} - Leningrad Kozitsky Works
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 570 x 355 x 280 mm / 22.4 x 14 x 11 inch
Notes Single-conversion superhet designed for Soviet Navy. Frequency coverage from 1.3 MHz to 20.6 MHz in five subbands. Unusual band switching mechanism - coil set box sliding left and right horizontally. Modes A1 (CW telegraphy) and A3 (AM telephony). Crystal filter, audio output for high impedance headphones and 600 Ohm line.
Net weight (2.2 lb = 1 kg) 42.9 kg / 94 lb 7.9 oz (94.493 lb)
Source of data - - Data from my own collection

Model page created by Valery Gromov. See "Data change" for further contributors.
