Leningrad {Ленинград} T-1 {Т-1}

Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 717153) Television

Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 717154) Television

Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 717167) Television

Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 717168) Television
Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 477791) Television Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 477799) Television
Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 477794) Television Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 136241) Television
Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 206233) Television Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 477797) Television
Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 477800) Television
Use red slider bar for more.
Leningrad {Ленинград} T-1 {Т-1}; Leningrad Kozitsky (ID = 477791) Television
Leningrad Kozitsky: Leningrad {Ленинград} T-1 {Т-1} [Television] ID = 477791 669x413
Select picture or schematic to display from thumbnails on the right and click for download.
For model Leningrad {Ленинград} T-1 {Т-1}, Leningrad Kozitsky Works:
Thanks for Anton Gorsky, Moscow, Russia

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1946–1949 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: 1Ц1С 6Ж4 6Ж4 6С2С 6Ж4 6Ж4 6Х6С 6П9 6Ж3 6Ж3 6Ж3 6Х6С 6Ж7 6Ф6С 6Н7С 6Н7С 6Ф6С 6Н7С Г-411 5Ц4С 5Ц4С 5Ц4С 18ЛК15
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Leningrad {Ленинград} T-1 {Т-1} - Leningrad Kozitsky Works
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 670 x 360 x 325 mm / 26.4 x 14.2 x 12.8 inch
Notes Image size 140 x 105 mm; Forerunner of Leningrad T2.

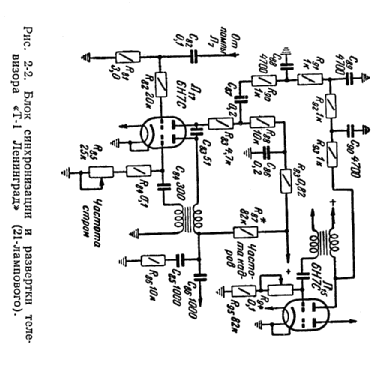

Three variants schema - 20,21 or 22 tube (without CRT).
105 × 140 mm Bildgröße; 18 cm Diagonale; Vorgängermodel des Leningrad T2.
Net weight (2.2 lb = 1 kg) 35 kg / 77 lb 1.5 oz (77.093 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (1) Elyaschkewitsch, 1959
