Leningrad {Ленинград} T-2 {Т-2}

• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad Kozitsky Works

• Year
• 1949 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 189129

• • alternative name: Radiotelegraf Works

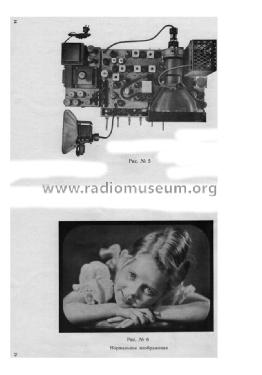

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 29

• Valves / Tubes
• 6Ж4 6С5С 6Ж4 6Ж4 6Ж4 6Х6С 6Ж4 6Н8С 6П9 6Ж3 6Ж3 6Ж3 6Ж3 6Х6С 6Ж8 6П6С 6Н8С 6А7 6Н8С 6Ф6С 6Н8С ГУ-50 1Ц1С 1Ц1С 5Ц4С 5Ц4С 5Ц4С 5Ц4С 23ЛК2Б

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Leningrad {Ленинград} T-2 {Т-2} - Leningrad Kozitsky Works

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (1)
• G.P. Samojlov, 1965

• Author
• Model page created by a member from D. See "Data change" for further contributors.
