PD-4 - ПД-4

PD-4 - ПД-4; Leningrad Kozitsky (ID = 1341709) Military

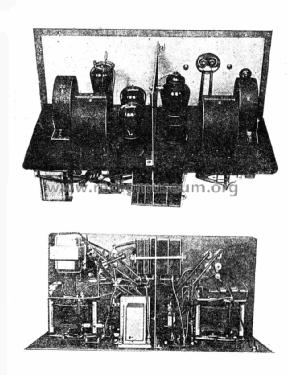

PD-4 - ПД-4; Leningrad Kozitsky (ID = 1341162) Military PD-4 - ПД-4; Leningrad Kozitsky (ID = 1341193) Military
Use red slider bar for more.
PD-4 - ПД-4; Leningrad Kozitsky (ID = 1341162) Military
Leningrad Kozitsky: PD-4 - ПД-4 [Military] ID = 1341162 933x837
Select picture or schematic to display from thumbnails on the right and click for download.
For model PD-4 - ПД-4, Leningrad Kozitsky Works:
Picture from manufacturer manual

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1935 ? Category: Military Equipment
Valves / Tubes 4: СБ-112 УБ-107 УБ-110 УБ-110
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4 & 80 & 160 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: PD-4 - ПД-4 - Leningrad Kozitsky Works
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 390 x 310 x 220 mm / 15.4 x 12.2 x 8.7 inch
Notes

Wave bands: 200 to 20000 m/ (1520 to 15 kHz).

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data - - Manufacturers Literature

Model page created by Sergey Kashekhlebov. See "Data change" for further contributors.
