RKÈ-2 {РКЭ-2}

RKÈ-2 {РКЭ-2}; Leningrad Kozitsky (ID = 677273) Radio
RKÈ-2 {РКЭ-2}; Leningrad Kozitsky (ID = 502439) Radio RKÈ-2 {РКЭ-2}; Leningrad Kozitsky (ID = 677274) Radio
RKÈ-2 {РКЭ-2}; Leningrad Kozitsky (ID = 684619) Radio
Use red slider bar for more.

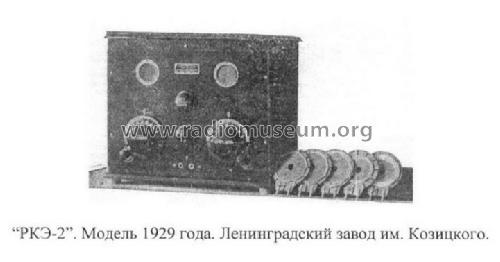

RKÈ-2 {РКЭ-2}; Leningrad Kozitsky (ID = 502439) Radio
Leningrad Kozitsky: RKÈ-2 {РКЭ-2} [Radio] ID = 502439 721x378
Select picture or schematic to display from thumbnails on the right and click for download.
For model RKÈ-2 {РКЭ-2}, Leningrad Kozitsky Works:
Thanks for Valery Brousnikin, Russia

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1930 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: УБ-107 or ПТ-2 УБ-107 or ПТ-2
Main principle TRF with regeneration
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage and/or dry batteries / 4 & 80 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RKÈ-2 {РКЭ-2} - Leningrad Kozitsky Works
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Coverage SW 13-98 m band in five ranges, changed for different external coils in schemat.
Schema same as RKÈ-3 {РКЭ-3} without last LF amp. stage (see in RMorg).
Mentioned in R. Malinin "Radio sets" 1937, Moscow
Literature/Schematics (1) -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
