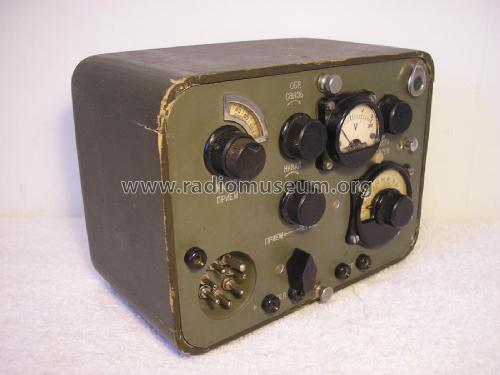

Sever ; Leningrad Kozitsky (ID = 1984758) TRX
Leningrad Kozitsky: Sever [TRX] ID = 1984758 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sever, Leningrad Kozitsky Works

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1941 Category: Transmitter & Receiver (TRX not Amateur)

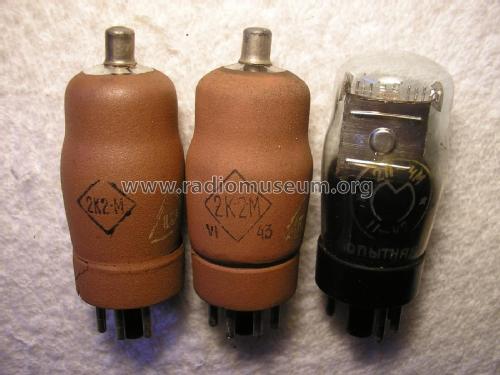

Valves / Tubes 3: 2К2М 2К2М 2П4М
Main principle TRF with regeneration
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 3 / 120; 180; 240 Volt
Loudspeaker - For headphones or amp.
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Sever - Leningrad Kozitsky Works
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 158 x 133 mm / 8.7 x 6.2 x 5.2 inch
Notes Rare WW2 transceiver. Designer B.A. Michalin, Russia.
Frequency range TX: 2.5 - 6 MHz, RX: 2 - 10 MHz. Battery weight 6 Kg.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data -- Schematic
Mentioned in Magazine "Radio", 5/2007 (Russia)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
