• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad RADIST Works

• Year
• 1939–1942 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 363812

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6Ж2М 6С5 6К7 6Ж2М 6Ж2М 6Ф6 6К7 6Г7 6Ж7 6П5С 6Н7 6Ж7 5Ц4С 879 5Ц4С ЛК-715

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110/127 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

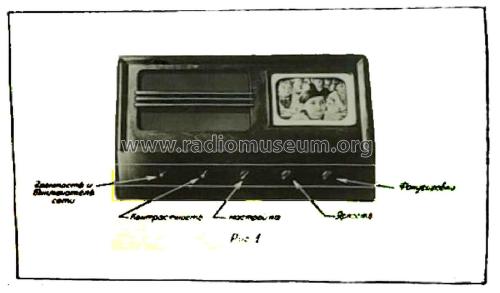

• Model: 17ТН-3 17TN-3 - Leningrad RADIST Works

• Shape
• Tablemodel, with any shape - general.

• Notes

• Russische SW TV Tischgerät 17TH-3(17TN-3)  wie beim 17TH-1 (17TN-1) jedoch Ohne Radio Rf teil.



• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Adrian Riesen. See "Data change" for further contributors.
