• Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 109820

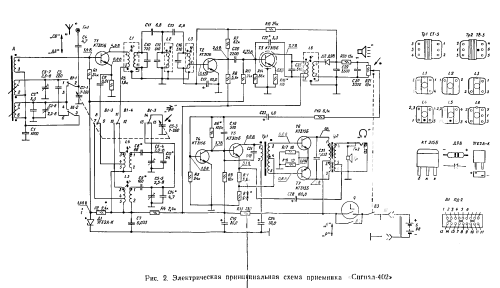

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 cm = 2 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

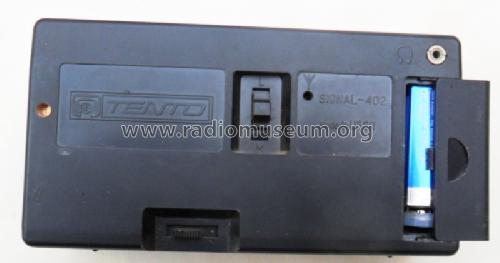

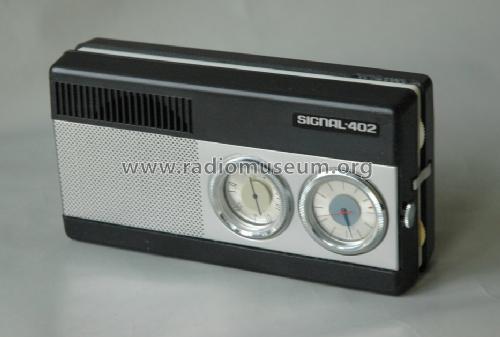

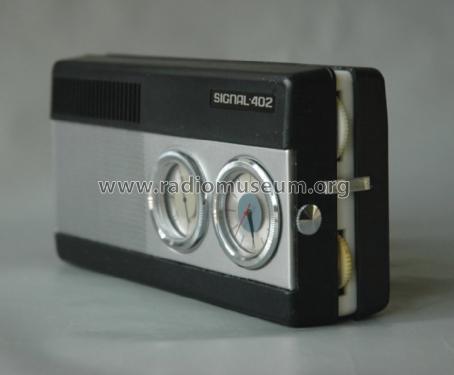

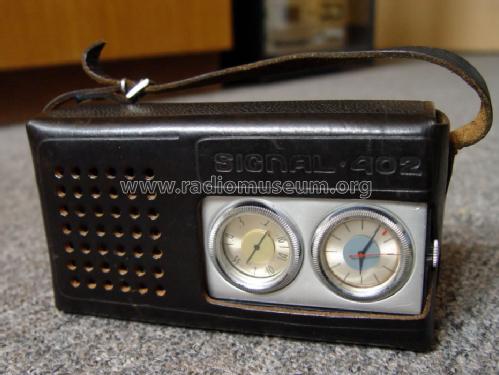

  • Model: Signal 402 - Leningrad NOVATOR Works
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 160 x 85 x 45 mm / 6.3 x 3.3 x 1.8 inch
  • Notes
  • mit Analog-Uhr, Weckfunktion.
  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Jörg Kulbe. See "Data change" for further contributors.
