Sonata {Соната}

Sonata {Соната} ; Leningrad NOVATOR (ID = 93066) Radio

Sonata {Соната} ; Leningrad NOVATOR (ID = 93067) Radio
Sonata {Соната} ; Leningrad NOVATOR (ID = 2016793) Radio Sonata {Соната} ; Leningrad NOVATOR (ID = 2016794) Radio
Sonata {Соната} ; Leningrad NOVATOR (ID = 857636) Radio Sonata {Соната} ; Leningrad NOVATOR (ID = 314584) Radio
Sonata {Соната} ; Leningrad NOVATOR (ID = 890781) Radio Sonata {Соната} ; Leningrad NOVATOR (ID = 890782) Radio
Sonata {Соната} ; Leningrad NOVATOR (ID = 890783) Radio Sonata {Соната} ; Leningrad NOVATOR (ID = 890784) Radio
Sonata {Соната} ; Leningrad NOVATOR (ID = 1204598) Radio Sonata {Соната} ; Leningrad NOVATOR (ID = 1204601) Radio
Use red slider bar for more.
Sonata {Соната} ; Leningrad NOVATOR (ID = 2016793) Radio
Leningrad NOVATOR: Sonata {Соната} [Radio] ID = 2016793 1400x1041

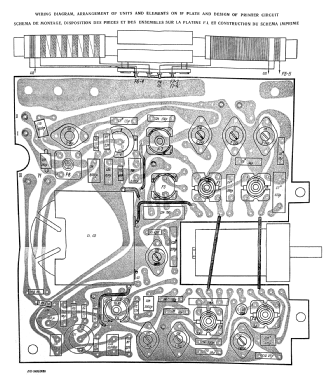

Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonata {Соната}, Leningrad NOVATOR Works:
Thanks for Mr.Pál Petró, Hungary and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Soviet Union
Manufacturer / Brand:  Leningrad NOVATOR Works
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 2x4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Sonata {Соната} - Leningrad NOVATOR Works
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 252 x 143 x 68 mm / 9.9 x 5.6 x 2.7 inch
Notes Auch Export in die DDR (1971).
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Price in first year of sale 310.00 DM
Collectors' prices
Source of data -- Schematic
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1970-71

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Leningrad NOVATOR Works
Here you find 27 models, 26 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
