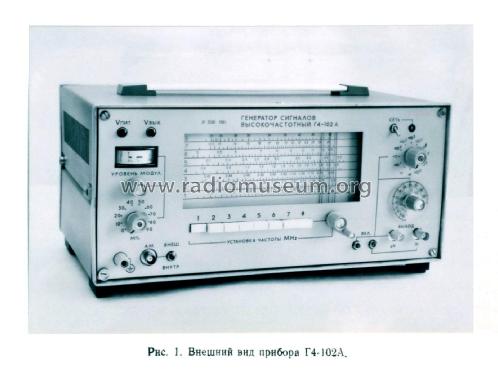

HF Signal Generator - Генератор сигналов высокочастотный G4-102A {Г4-102А}
Lenin Radio Works, Gorky
- Country
- Soviet Union
- Manufacturer / Brand
- Lenin Radio Works, Gorky
- Year
- 1984
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 287474
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 400Hz 115 / 50Hz 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: HF Signal Generator - Генератор сигналов высокочастотный G4-102A {Г4-102А} - Lenin Radio Works, Gorky
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 360 x 160 x 200 mm / 14.2 x 6.3 x 7.9 inch
- Notes
0,1-50 MHz.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
