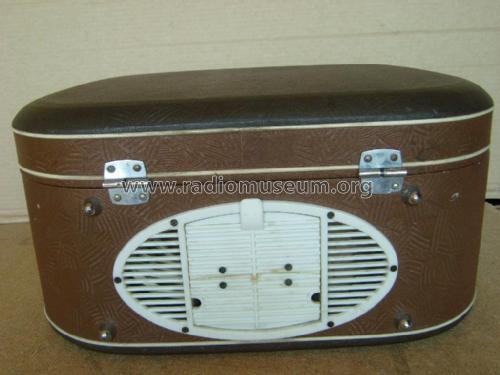

Astra - Астра 2

Astra - Астра 2; Leningrad Techpribor (ID = 2265176) R-Player Astra - Астра 2; Leningrad Techpribor (ID = 2265177) R-Player
Astra - Астра 2; Leningrad Techpribor (ID = 2265178) R-Player Astra - Астра 2; Leningrad Techpribor (ID = 2265179) R-Player
Astra - Астра 2; Leningrad Techpribor (ID = 2265180) R-Player Astra - Астра 2; Leningrad Techpribor (ID = 2265181) R-Player
Use red slider bar for more.
Astra - Астра 2; Leningrad Techpribor (ID = 2265176) R-Player
Leningrad Techpribor: Astra - Астра 2 [R-Player] ID = 2265176 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astra - Астра 2, Leningrad Techpribor Works

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Techpribor Works
Year: 1962–1966 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 6Н2П 6Н1П 6П14П 6Е1П
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (undistorted)
from Radiomuseum.org Model: Astra - Астра 2 - Leningrad Techpribor Works
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 320 x 190 mm / 15.7 x 12.6 x 7.5 inch
Notes

Астра 2 имеет скорость записи и воспроизведения 4,76см/сек и 9,53 см/сек Выход 2 эллиптических громкоговорителя 1ГД-18 или на выносную акустическую систему,состоящую из двух динамическихгромкоговорителей типа4ГД-7 и двух-1ГД-12

Astra 2 has a recording and playback speed of 4.76 cm/sec and 9.53 cm/s.
2 elliptical loudspeakers Type: 1GD-18 or a remote acoustic system consisting of two dynamic speakers of type 4GD-7 and two-1GD-12.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Mentioned in Справочник "Магнитофоны"Г.И.Гладышев 1969г.

Model page created by Vladimir Manannikov. See "Data change" for further contributors.
