Super-Heterodyne L

Super-Heterodyne L; Leutz, C.R., Inc. (ID = 1050976) Radio

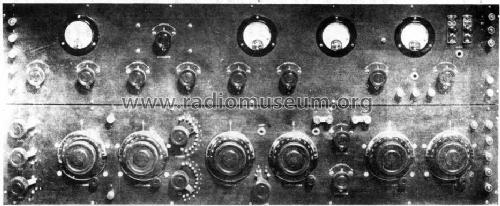

Super-Heterodyne L; Leutz, C.R., Inc. (ID = 1552476) Radio Super-Heterodyne L; Leutz, C.R., Inc. (ID = 440924) Radio
Super-Heterodyne L; Leutz, C.R., Inc. (ID = 440925) Radio Super-Heterodyne L; Leutz, C.R., Inc. (ID = 440926) Radio
Use red slider bar for more.
Super-Heterodyne L; Leutz, C.R., Inc. (ID = 1552476) Radio
Leutz, C.R., Inc.: Super-Heterodyne L [Radio] ID = 1552476 933x395
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Heterodyne L, Leutz, C.R., Inc.(Golden-Leutz, Norden-Hauck); Altoona (PA) later New York:
Image Courtesy of Alan Douglas for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Leutz, C.R., Inc.(Golden-Leutz, Norden-Hauck); Altoona (PA) later New York
alternative name

Experimenters Information Service || Norden-Hauck
Year: 1922 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10:
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Super-Heterodyne L - Leutz, C.R., Inc.Golden-Leutz,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 40 x 8 x 8 inch / 1016 x 203 x 203 mm
Notes Two bands: 160 to 500 meters, and 330 to 850 meters. Tuned IF. Two units, each having above mentioned dimensions.
Siehe auch Triodensuperhets.
Mentioned in Radio Manufacturers of the 1920's, Vol. 2 (p.124)
Literature/Schematics (1) CH.R.Leutz: Superheterodyne Receivers,1923/24

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Leutz, C.R., Inc.(Golden-Leutz, Norden-Hauck); Altoona (PA) later New York
Here you find 71 models, 34 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
