Disco Carnegie 4003 Ch= Loewe-Opta 57270-Z Tischgerät

Liesenkötter, Westfalen Tonmöbelwerk; Saerbeck/Westfalen

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 195237

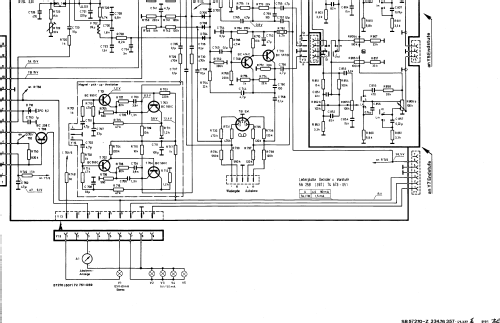

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Disco Carnegie 4003 Ch= Loewe-Opta 57270-Z [Tischgerät] - Liesenkötter, Westfalen
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 765 x 200 x 350 mm / 30.1 x 7.9 x 13.8 inch
  • Notes

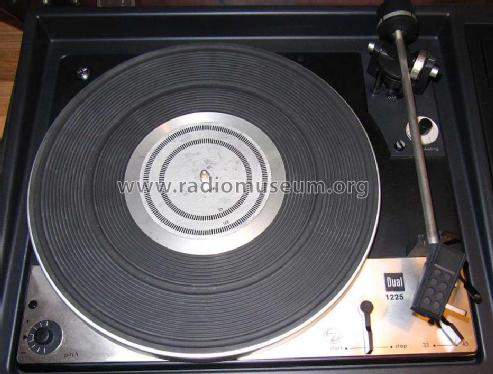

  • Mit Kassettenrekorder, Dual Plattenwechsler 1225.
    Radio Loewe-Opta 57270-Z, Ausgangsleistung 2 x 25/45 Watt.
    AFC auf UKW. 5 Festsenderspeicher.
  • Net weight (2.2 lb = 1 kg)
  • 16.5 kg / 36 lb 5.5 oz (36.344 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Jochen Amend. See "Data change" for further contributors.
