• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 202215

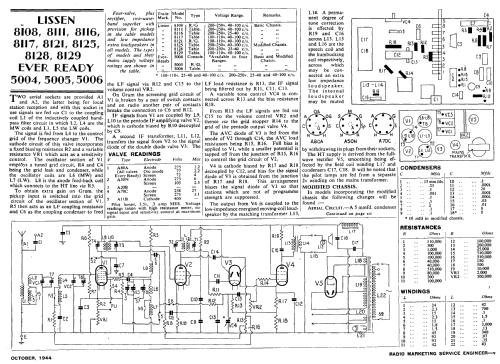

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 127 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 8121 - Lissen Ltd.; London and
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Radiogram. Chassis similar to the Lissen 8117 table radio. The 8108 radiogram is for 200-250 volts AC mains.
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
