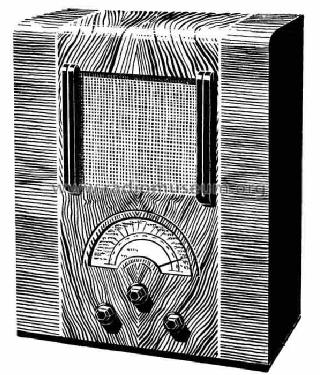

8214; Lissen Ltd.; London (ID = 2097820) Radio 8214; Lissen Ltd.; London (ID = 541176) Radio
8214; Lissen Ltd.; London (ID = 1299321) Radio
Use red slider bar for more.

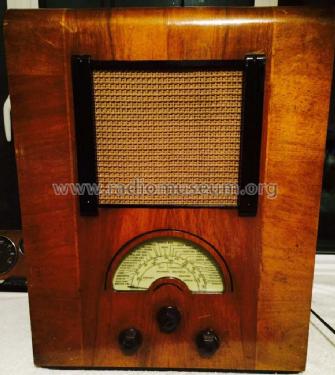

8214; Lissen Ltd.; London (ID = 2097817) Radio
Lissen Ltd.; London: 8214 [Radio] ID = 2097817 915x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8214, Lissen Ltd.; London and Richmond, Surrey:
Ebay UK auction item no. 162456639675 seller jakeblobs

Country:  Great Britain (UK)
Manufacturer / Brand:  Lissen Ltd.; London and Richmond, Surrey
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: A80A A30D A70C A11B
Main principle Superheterodyne (common); ZF/IF 465 kHz; Reaction
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-215; 216-235; 236-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 8214 - Lissen Ltd.; London and
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 14.75 x 18.5 x 8.5 inch / 375 x 470 x 216 mm
Notes

Fixed IF reaction and triode detector.

As with the identical chassis Ever Ready 5014 this is an unusual superhet as it has no actual seperate IF amp, thus one valve (tube) less than a typical Superhet.

Source of data Radio! Radio!

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
