Windsor 8406

Windsor 8406; Lissen Ltd.; London (ID = 1437063) Radio Windsor 8406; Lissen Ltd.; London (ID = 541190) Radio

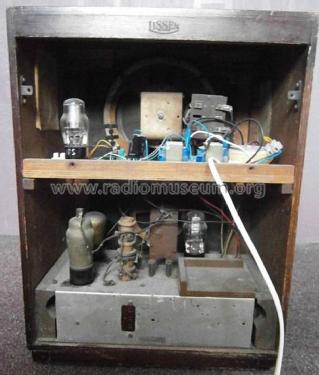

Windsor 8406; Lissen Ltd.; London (ID = 1437065) Radio
Use red slider bar for more.
Windsor 8406; Lissen Ltd.; London (ID = 1437063) Radio
Lissen Ltd.; London: Windsor 8406 [Radio] ID = 1437063 933x1022
Select picture or schematic to display from thumbnails on the right and click for download.
For model Windsor 8406, Lissen Ltd.; London and Richmond, Surrey:
enlarged and edited from ebay 121086685602 pod950

Country:  Great Britain (UK)
Manufacturer / Brand:  Lissen Ltd.; London and Richmond, Surrey
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: K50N K30K K70B
Main principle TRF with regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 120 / 2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Windsor 8406 - Lissen Ltd.; London and
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

Part of the 1938-1939 "ALL WORLD MODELS"
The Carisbrooke 4 valve AC 2 band superhet is the AC only chassis in this cabinet.




Source of data - - Manufacturers Literature

Model page created by Roy Johnson. See "Data change" for further contributors.
