Battery Four 8169

Battery Four 8169; Lissen Ltd.; London (ID = 1297457) Radio

Battery Four 8169; Lissen Ltd.; London (ID = 1297458) Radio
Battery Four 8169; Lissen Ltd.; London (ID = 1297422) Radio Battery Four 8169; Lissen Ltd.; London (ID = 1299348) Radio
Use red slider bar for more.
Battery Four 8169; Lissen Ltd.; London (ID = 1297422) Radio

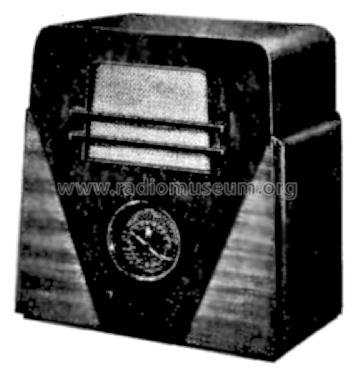

Lissen Ltd.; London: Battery Four 8169 [Radio] ID = 1297422 933x975
Select picture or schematic to display from thumbnails on the right and click for download.
For model Battery Four 8169, Lissen Ltd.; London and Richmond, Surrey:

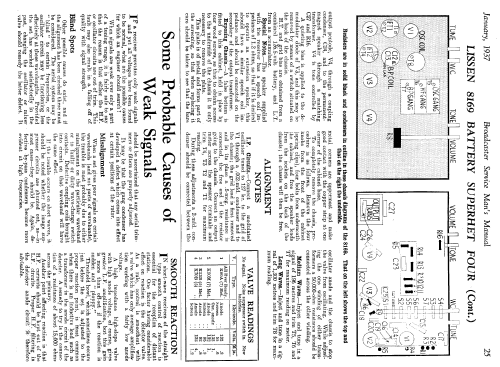

Service Man's Manual January 1937

Country:  Great Britain (UK)
Manufacturer / Brand:  Lissen Ltd.; London and Richmond, Surrey
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: K80A K50M K23B K70B
Main principle Superheterodyne (common); ZF/IF 127 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 136 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Battery Four 8169 - Lissen Ltd.; London and
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Only 1.2 Ohm speaker, an external speaker should be similar
An external aerial and earth is required.
The Ever Ready 5019 is a similar upright table model

Model page created by Michael Watterson. See "Data change" for further contributors.



All listed radios etc. from Lissen Ltd.; London and Richmond, Surrey
