Inductance Box L1

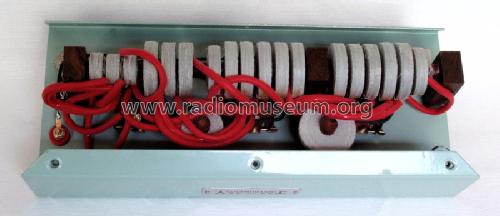

Inductance Box L1; LLoyd Instruments; (ID = 1464381) Equipment Inductance Box L1; LLoyd Instruments; (ID = 1464382) Equipment
Use red slider bar for more.
Inductance Box L1; LLoyd Instruments; (ID = 1464381) Equipment
LLoyd Instruments;: Inductance Box L1 [Equipment] ID = 1464381 900x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inductance Box L1, LLoyd Instruments; Southampton

Country:  Great Britain (UK)
Manufacturer / Brand:  LLoyd Instruments; Southampton
Year: 1975 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Inductance Box L1 - LLoyd Instruments; Southampton
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 280 x 95 x 124 mm / 11 x 3.7 x 4.9 inch
Notes

The L1 is a three-decade Inductance Box with a range from 1mH to 1H in 1mH steps, with a stated accuracy of +/- 5%.

Net weight (2.2 lb = 1 kg) 1.310 kg / 2 lb 14.2 oz (2.885 lb)

Model page created by Gwyn Griffiths. See "Data change" for further contributors.
