• Country
• United States of America (USA)

• Manufacturer / Brand
• Lloyd's Electronics; Chicago, IL

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336641

• Number of Tubes
• 7

• Valves / Tubes
• 12DT8 12DT8 12BE6 12BA6 12BA6 12AV6 50C5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

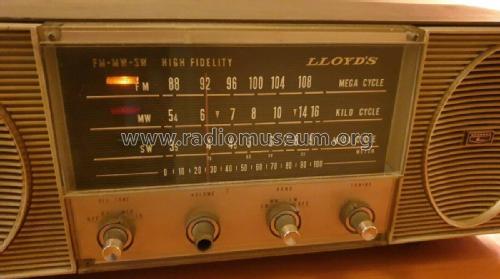

• Model: FM-MW-SW High Fidelity TM-838A - Lloyd's Electronics; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 180 x 200 mm / 21.3 x 7.1 x 7.9 inch

• Notes

• Twin speaker, AFC.   Made in Japan.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

• Other Models

• Here you find 171 models, 149 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lloyd's Electronics; Chicago, IL
