• Year
  • 1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 231882

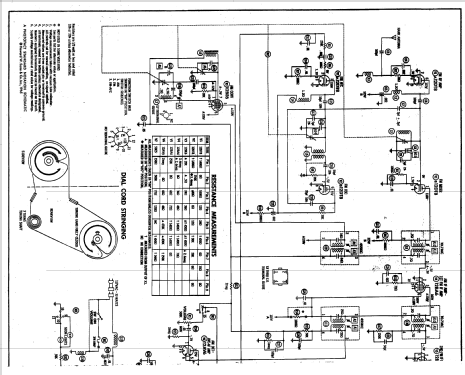

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TM-77 - Lloyd's Electronics; Chicago,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 15 x 8.75 x 5.75 inch / 381 x 222 x 146 mm
  • Notes
  • Made in Japan.

  • Author
  • Model page created by John Backscheider. See "Data change" for further contributors.
