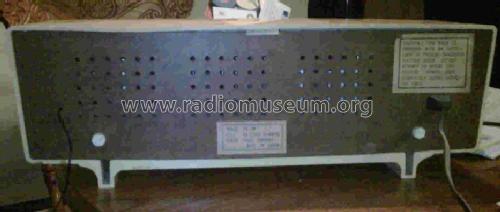

TM-78 AM/FM 2 Speaker Hi-Fi

TM-78 AM/FM 2 Speaker Hi-Fi; Lloyd's Electronics; (ID = 643313) Radio TM-78 AM/FM 2 Speaker Hi-Fi; Lloyd's Electronics; (ID = 643314) Radio
TM-78 AM/FM 2 Speaker Hi-Fi; Lloyd's Electronics; (ID = 643315) Radio TM-78 AM/FM 2 Speaker Hi-Fi; Lloyd's Electronics; (ID = 643316) Radio
TM-78 AM/FM 2 Speaker Hi-Fi; Lloyd's Electronics; (ID = 643317) Radio
Use red slider bar for more.
TM-78 AM/FM 2 Speaker Hi-Fi; Lloyd's Electronics; (ID = 643313) Radio
Lloyd's Electronics;: TM-78 AM/FM 2 Speaker Hi-Fi [Radio] ID = 643313 932x389
Select picture or schematic to display from thumbnails on the right and click for download.
For model TM-78 AM/FM 2 Speaker Hi-Fi, Lloyd's Electronics; Chicago, IL:
TM-78 Front panel

Country:  United States of America (USA)
Manufacturer / Brand:  Lloyd's Electronics; Chicago, IL
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12DT8 12DT8 12BA6 12BE6 12AV6 12AV6 35C5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line (AC, UC or DC not known) / 120 Volt
Loudspeaker 2 Loudspeakers / Ø 4 inch = 10.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: TM-78 AM/FM 2 Speaker Hi-Fi - Lloyd's Electronics; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 14 x 6 x 5 inch / 356 x 152 x 127 mm
Net weight (2.2 lb = 1 kg) 2 lb (2 lb 0 oz) / 0.908 kg
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Jeff Droll. See "Data change" for further contributors.
