Dream Collection - AM/FM Digital Clock Radio J225

Dream Collection - AM/FM Digital Clock Radio J225; Lloytron, Hong Kong (ID = 2049490) Radio Dream Collection - AM/FM Digital Clock Radio J225; Lloytron, Hong Kong (ID = 2049493) Radio

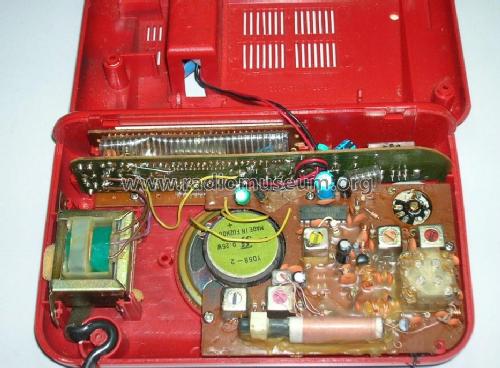

Dream Collection - AM/FM Digital Clock Radio J225; Lloytron, Hong Kong (ID = 2049495) Radio Dream Collection - AM/FM Digital Clock Radio J225; Lloytron, Hong Kong (ID = 2049497) Radio
Dream Collection - AM/FM Digital Clock Radio J225; Lloytron, Hong Kong (ID = 2049499) Radio
Use red slider bar for more.
Dream Collection - AM/FM Digital Clock Radio J225; Lloytron, Hong Kong (ID = 2049490) Radio
Lloytron, Hong Kong: Dream Collection - AM/FM Digital Clock Radio J225 [Radio] ID = 2049490 933x693
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dream Collection - AM/FM Digital Clock Radio J225, Lloytron, Hong Kong:
Collection of Laura Conde Pais.

Country:  Hong Kong
Manufacturer / Brand:  Lloytron, Hong Kong
Year: 1987 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: S9018 S9018 ULN2204
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 240 & for clock backup 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Dream Collection - AM/FM Digital Clock Radio J225 - Lloytron, Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 175 x 52 x 106 mm / 6.9 x 2 x 4.2 inch
Notes

Band coverage: AM - 535 to 1600 kHz
                        FM - 88 to 108 MHz

British Design Nº. 1041271.

Made in China for Lloytron Electronics Ltd.

Net weight (2.2 lb = 1 kg) 0.510 kg / 1 lb 2 oz (1.123 lb)

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
