2043

2043; LMT L.M.T., Le (ID = 2311161) Radio 2043; LMT L.M.T., Le (ID = 2311164) Radio
2043; LMT L.M.T., Le (ID = 1629283) Radio 2043; LMT L.M.T., Le (ID = 1629284) Radio
2043; LMT L.M.T., Le (ID = 1629285) Radio 2043; LMT L.M.T., Le (ID = 1629286) Radio
2043; LMT L.M.T., Le (ID = 1629287) Radio
Use red slider bar for more.

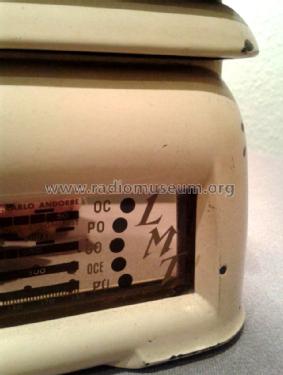

2043; LMT L.M.T., Le (ID = 2311161) Radio
LMT L.M.T., Le: 2043 [Radio] ID = 2311161 1400x1006
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2043, LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt

Country:  France
Manufacturer / Brand:  LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AT6 6AQ5 6X4
Main principle ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 2043 - LMT L.M.T., Le Matériel
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 309 x 209 x 180 mm / 12.2 x 8.2 x 7.1 inch
Notes

4 gammes d'ondes dont ondes courtes européennes étalées, mêmes caracteristiques que modéle 204.

Coffret bakélite, quatre couleurs: ivoire, bleu pastel, vert d'eau et marron.

Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Mentioned in Le grand livre de la TSF (Doctsf Ref 8682)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Bekir Yurdakul. See "Data change" for further contributors.



All listed radios etc. from LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
Here you find 166 models, 136 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
