• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 100734

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

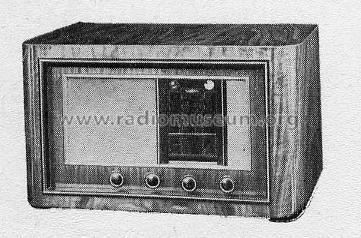

  • Model: E739 - Loewe-Radio; Paris
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 620 x 360 x 330 mm / 24.4 x 14.2 x 13 inch
  • Notes
  • Dial lamps: 2x 7V/0,3A
  • Price in first year of sale
  • 2,690.00 FFR
  • Circuit diagram reference
  • La Documentation du Revendeur - Radio
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
