• Country
• Germany

• Manufacturer / Brand
• Liesenkötter, Westfalen Tonmöbelwerk; Saerbeck/Westfalen

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183755

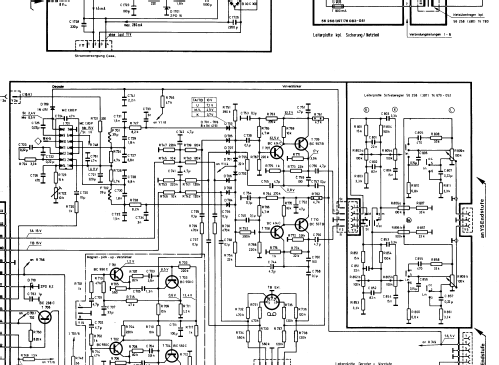

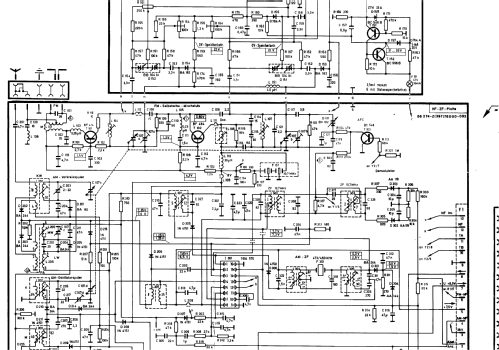

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

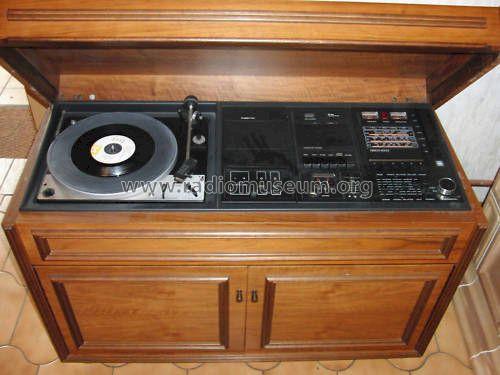

• Model: Disco Carnegie 4003 Ch= Loewe-Opta 57270-Z [Standgerät] - Liesenkötter, Westfalen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 940 x 610 x 380 mm / 37 x 24 x 15 inch

• Notes

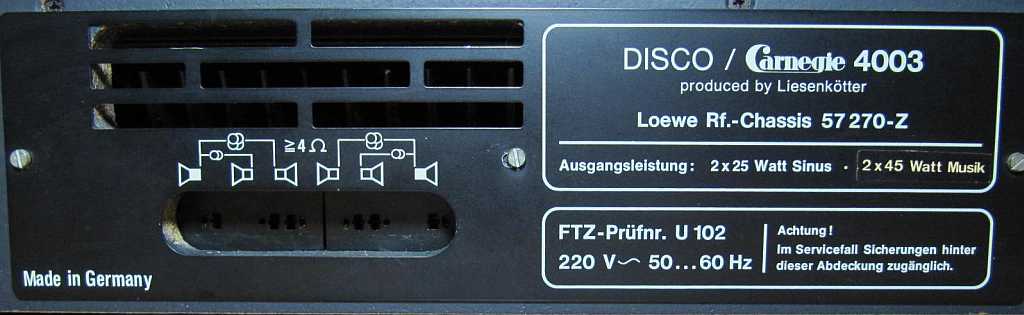

• Liesenkötter Disco Carnegie 4003, Loewe RF Ch= 57 270-Z;

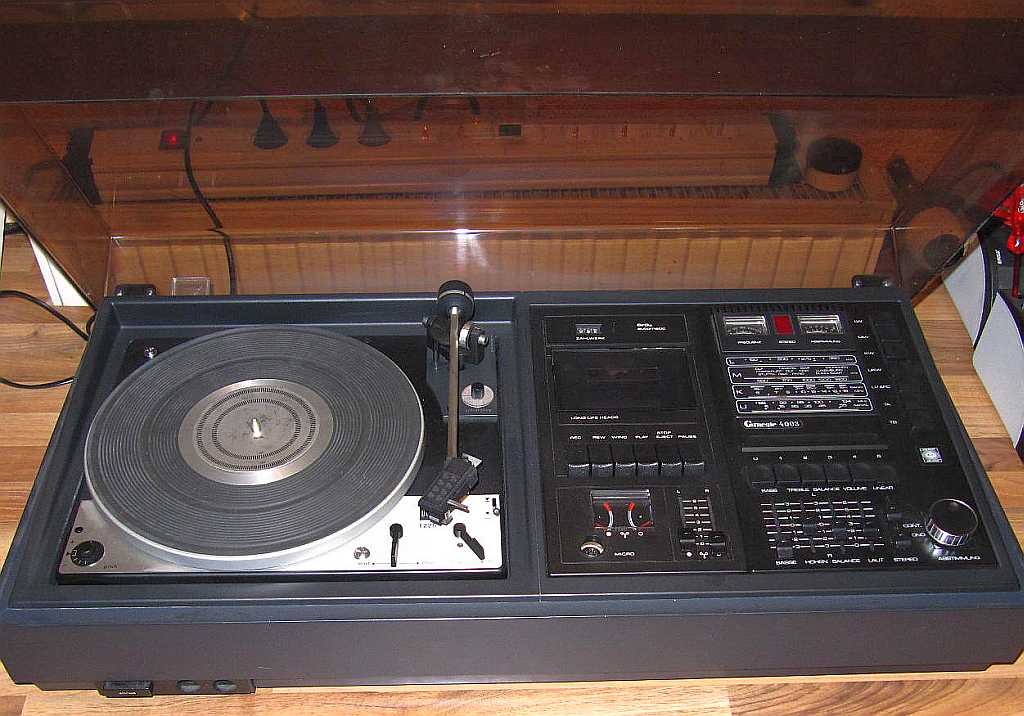

  Truhe mit Deckel, Automatik Plattenspieler, 2 x 25/45 Watt.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
