• Country
• France

• Manufacturer / Brand
• Loewe-Radio; Paris

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 274044

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 2B7 47 80

• Main principle
• Superheterodyne (common); ZF/IF 135 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

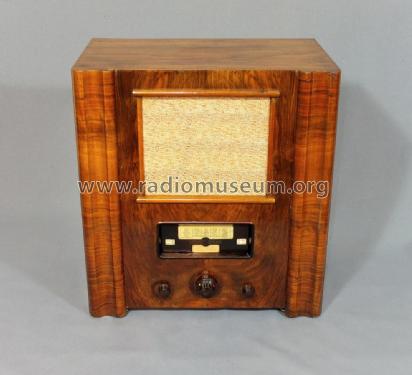

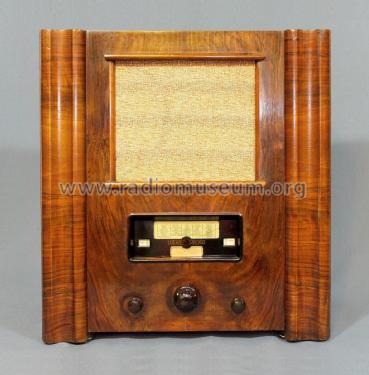

• Model: Senator - Loewe-Radio; Paris

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 430 x 450 x 270 mm / 16.9 x 17.7 x 10.6 inch

• Notes

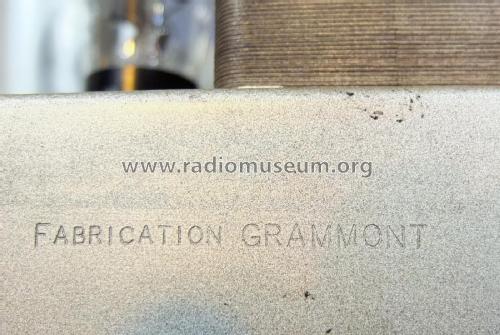

• Chassis Herstellerprägung : FABRICATION GRAMMONT. Chassis ist bis auf Skalenträger baugleich mit Grammont, Modell 25. Gehäuse ist so bei Grammont nicht zu finden.

  8 Kondensatoren mit Herstellerbezeichnung : RADIO A.G. - D.S. LOEWE.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Author
• Model page created by Peter Kahlich. See "Data change" for further contributors.
