• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 301981

• • Brand: SEL

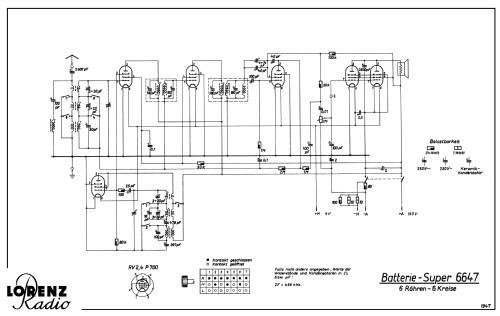

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• RV2,4P700 RV2,4P700 RV2,4P700 RV2,4P700 RV2,4P700 RV2,4P700

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / DC 4 V & DC 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Batterie-Super 6647 - Lorenz; Berlin, Zuffenhausen u

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.

• Other Models

• Here you find 730 models, 584 with images and 354 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
