Empfänger E 200 Ln 28892

Empfänger E 200 Ln 28892; Lorenz; Berlin, (ID = 2392981) Military Empfänger E 200 Ln 28892; Lorenz; Berlin, (ID = 2392983) Military

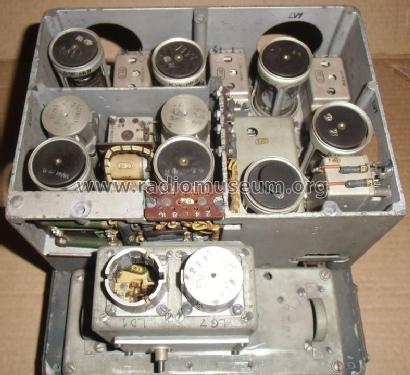

Empfänger E 200 Ln 28892; Lorenz; Berlin, (ID = 2392984) Military Empfänger E 200 Ln 28892; Lorenz; Berlin, (ID = 2392982) Military
Use red slider bar for more.
Empfänger E 200 Ln 28892; Lorenz; Berlin, (ID = 2392981) Military
Lorenz; Berlin,: Empfänger E 200 Ln 28892 [Military] ID = 2392981 751x728
Select picture or schematic to display from thumbnails on the right and click for download.
For model Empfänger E 200 Ln 28892, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1938–1945 ?? Category: Military Equipment
Valves / Tubes 11: LV1 LV1 LV1 LV1 LV1 LV1 LV1 LG1 LG1 LG7 LD1
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Empfänger E 200 Ln 28892 - Lorenz; Berlin, Zuffenhausen u
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 235 x 205 x 245 mm / 9.3 x 8.1 x 9.6 inch
Notes

Bordgerät. Empfängerteil des FuG 200 Hohentwiel (Flugzeugradar), Frequenz ca. 550 MHz

Model page created by Josef Jonasek. See "Data change" for further contributors.
