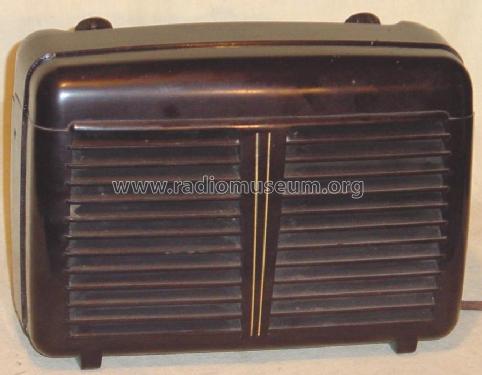

Feldberg LM; Lorenz; Berlin, (ID = 49101) Radio Feldberg LM; Lorenz; Berlin, (ID = 175806) Radio
Feldberg LM; Lorenz; Berlin, (ID = 175807) Radio Feldberg LM; Lorenz; Berlin, (ID = 175811) Radio
Feldberg LM; Lorenz; Berlin, (ID = 175812) Radio Feldberg LM; Lorenz; Berlin, (ID = 175814) Radio
Feldberg LM; Lorenz; Berlin, (ID = 175815) Radio Feldberg LM; Lorenz; Berlin, (ID = 1281026) Radio
Use red slider bar for more.
Feldberg LM; Lorenz; Berlin, (ID = 49099) Radio
Lorenz; Berlin,: Feldberg LM [Radio] ID = 49099 627x497
Select picture or schematic to display from thumbnails on the right and click for download.
For model Feldberg LM, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: UCH42 UEL71
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz; Super, reaction, but not adjustable
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Feldberg LM - Lorenz; Berlin, Zuffenhausen u
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 190 x 167 x 129 mm / 7.5 x 6.6 x 5.1 inch
Notes Baugleich mit Schaub Pirolette-Super. Eingebaute Hilfsantenne.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 142.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau (5113)
