Paladin 5

Paladin 5; Lorenz; Berlin, (ID = 8905) Radio
Paladin 5; Lorenz; Berlin, (ID = 141453) Radio Paladin 5; Lorenz; Berlin, (ID = 1040811) Radio
Paladin 5; Lorenz; Berlin, (ID = 1040813) Radio Paladin 5; Lorenz; Berlin, (ID = 1040815) Radio
Paladin 5; Lorenz; Berlin, (ID = 1040817) Radio Paladin 5; Lorenz; Berlin, (ID = 1040818) Radio
Use red slider bar for more.
Paladin 5; Lorenz; Berlin, (ID = 141453) Radio

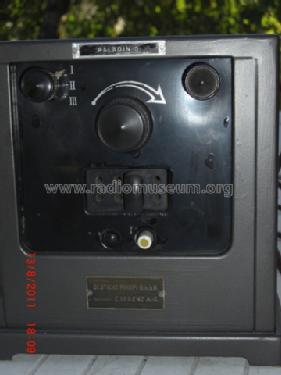

Lorenz; Berlin,: Paladin 5 [Radio] ID = 141453 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Paladin 5, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN904 RES174d 506
Conflicting model year with tube data.
The model date contradicts tube dates. [ RES174d (1931)]
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110 or 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Paladin 5 - Lorenz; Berlin, Zuffenhausen u
Material Metal case
Dimensions (WHD) 270 x 185 x 185 mm / 10.6 x 7.3 x 7.3 inch
Notes Philips-Lizenz
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 213.00 RM !
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Der Radio-Händler / Radio-Fernseh-Händler (ab Aug. 1951, H.15) (2920)
