• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3015

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• BCH1 RENS1884 BL2

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; Super, reaction, but not adjustable

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Direct Current supply (DC) / 150/220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

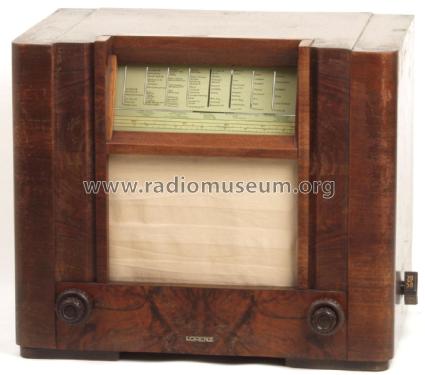

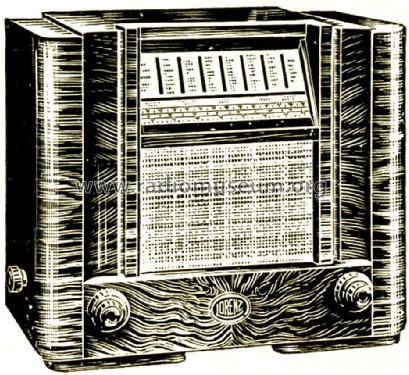

• Model: Supercelohet Junior KG - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 465 x 365 x 340 mm / 18.3 x 14.4 x 13.4 inch

• Notes
• im Speiermann-Katalog werden die identisch beschriebenen Modelle mit anderer Benennung geführt (GLK anstatt KG). Pultskala.

• Price in first year of sale
• 266.00 RM

• Source of data

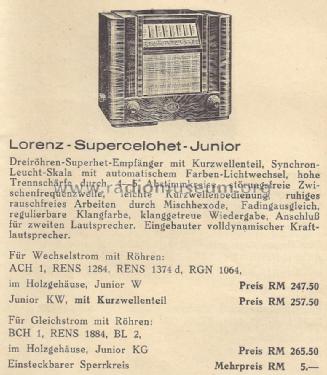

• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Other Models

• Here you find 730 models, 584 with images and 353 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
