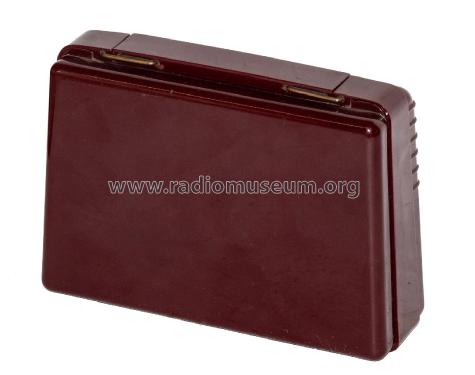

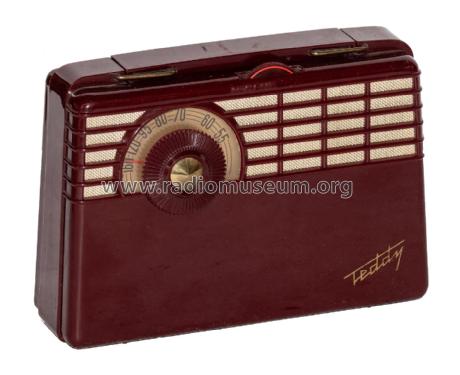

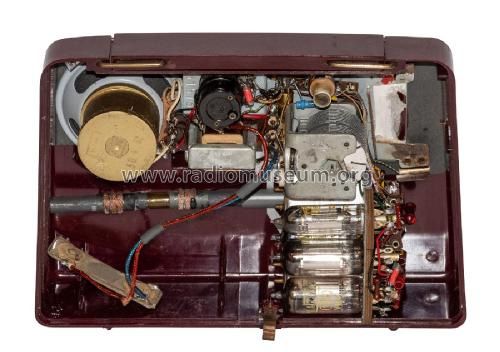

Teddy ; Lorenz; Berlin, (ID = 443777) Radio
Lorenz; Berlin,: Teddy [Radio] ID = 443777 625x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Teddy, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF91 DAF91 3Q4
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 1,5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out
from Radiomuseum.org Model: Teddy - Lorenz; Berlin, Zuffenhausen u
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 208 x 146 x 63 mm / 8.2 x 5.7 x 2.5 inch
Notes Ferritantenne.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 124.00 DM
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funk-Technik (FT) (1962, 12/319)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
Here you find 706 models, 558 with images and 339 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Lorenz; Berlin,: Teddy
Threads: 1 | Posts: 2
Hits: 2339     Replies: 1
lorenz: Teddy
Peter von Bechen † 15.7.19
07.May.10
  1

Erwähnt in Funk-Technik 1952, Heft 12, Seite 319

Arpad Roth † 27.3.17
08.May.10
  2

Hallo Herr von Bechen,

techn. Angaben   (Literatur-Nachweis) bitte immer ins Modellblatt eintragen.
