LT11F90

LT11F90; Luma Elektronik AB , (ID = 1414368) Television

LT11F90; Luma Elektronik AB , (ID = 1415923) Television

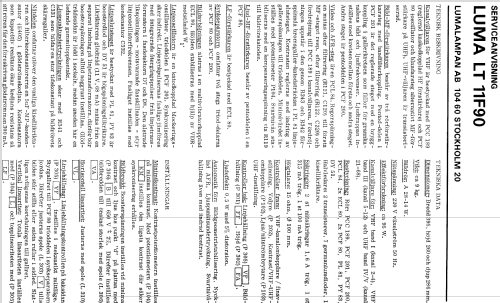

LT11F90; Luma Elektronik AB , (ID = 1415924) Television

LT11F90; Luma Elektronik AB , (ID = 1415925) Television

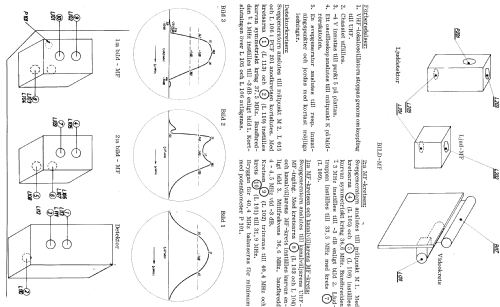

LT11F90; Luma Elektronik AB , (ID = 1415926) Television
LT11F90; Luma Elektronik AB , (ID = 1413935) Television LT11F90; Luma Elektronik AB , (ID = 1413936) Television
LT11F90; Luma Elektronik AB , (ID = 1413937) Television
Use red slider bar for more.
LT11F90; Luma Elektronik AB , (ID = 1413935) Television

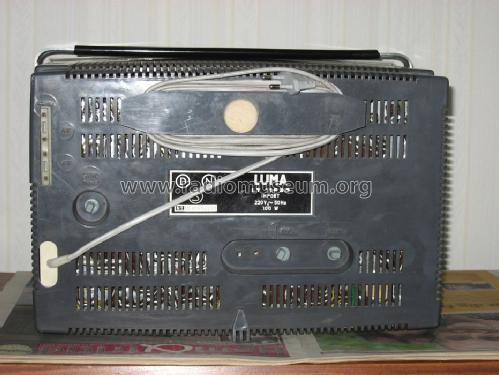

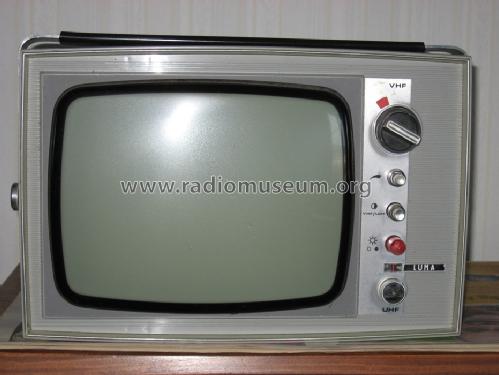

Luma Elektronik AB ,: LT11F90 [Television] ID = 1413935 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model LT11F90, Luma Elektronik AB , Lumalampan AB ; Stockholm

Country:  Sweden
Manufacturer / Brand:  Luma Elektronik AB , Lumalampan AB ; Stockholm
Year: 1969 Category: Television Receiver (TV) or Monitor
Valves / Tubes 12: PCC189 PCF80 PCF201 PCF200 PCL84 PCF80 ECL80 ECL80 PL81 PY83 DY51 A28-14W
Semiconductors (the count is only for transistors) 2:
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (undistorted)
from Radiomuseum.org Model: LT11F90 - Luma Elektronik AB ,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 260 x 286 mm / 15.6 x 10.2 x 11.3 inch
Notes

VHF channels 2-12, UHF channels 21-68.

Manufactured in Hungary by Videoton, branded and sold in Sweden by Luma. The set is similar to the Minivizor TA-675 but according to the CCIR B,G standard instead of OIRT.

Technical note: Because the heater voltage for the CRT is taken from an auxiliary winding on the line output transformer, it is extremely important that the booster voltage is always correctly adjusted (650 V ± 2% at zero beam current).

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Torbjörn Forsman. See "Data change" for further contributors.
