B150 (150B)

B150 ; Lumophon, Bruckner & (ID = 8944) Radio

B150 ; Lumophon, Bruckner & (ID = 1571118) Radio

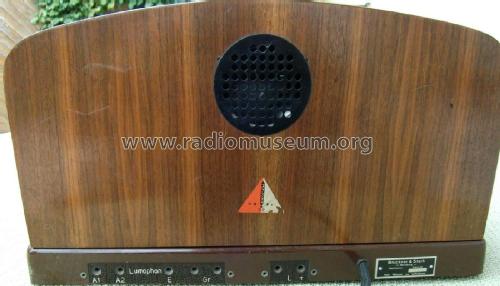

B150 ; Lumophon, Bruckner & (ID = 2136709) Radio B150 ; Lumophon, Bruckner & (ID = 2136710) Radio
B150 ; Lumophon, Bruckner & (ID = 2136711) Radio B150 ; Lumophon, Bruckner & (ID = 377669) Radio
B150 ; Lumophon, Bruckner & (ID = 2429146) Radio
Use red slider bar for more.

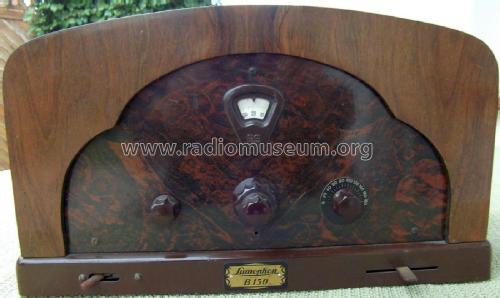

B150 ; Lumophon, Bruckner & (ID = 2136709) Radio
Lumophon, Bruckner &: B150 [Radio] ID = 2136709 1400x835
Select picture or schematic to display from thumbnails on the right and click for download.
For model B150 (150B), Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RES094 RE034 RE034 RE134 or RES164
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: B150 - Lumophon, Bruckner & Stark,
Material Wooden case
Notes Scheibenskala [501]
Price in first year of sale 86.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Katalog Radio-Zentrale Prohaska 1931/32


All listed radios etc. from Lumophon, Bruckner & Stark, Nürnberg
Here you find 300 models, 249 with images and 198 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
