B340

B340; Lumophon, Bruckner & (ID = 1108014) Radio

B340; Lumophon, Bruckner & (ID = 8946) Radio

B340; Lumophon, Bruckner & (ID = 1577988) Radio
B340; Lumophon, Bruckner & (ID = 1785077) Radio B340; Lumophon, Bruckner & (ID = 62601) Radio
B340; Lumophon, Bruckner & (ID = 991249) Radio B340; Lumophon, Bruckner & (ID = 1785078) Radio
Use red slider bar for more.
B340; Lumophon, Bruckner & (ID = 1785077) Radio
Lumophon, Bruckner &: B340 [Radio] ID = 1785077 800x531
Select picture or schematic to display from thumbnails on the right and click for download.
For model B340, Lumophon, Bruckner & Stark, Nürnberg:
ebay 191409479409, isabbudn

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RES094 RE034 RE034 RE134 or RES164
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4 & 90 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: B340 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 408 x 285 x 335 mm / 16.1 x 11.2 x 13.2 inch
Notes Trommelskala
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 85.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb

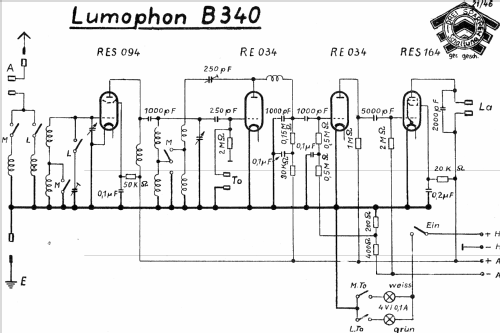

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funkversand Kredit 1932/33
