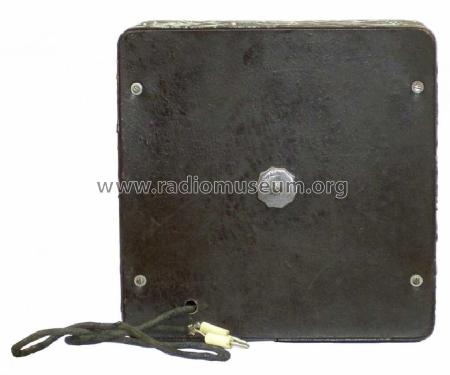

E30; Lumophon, Bruckner & (ID = 88176) Speaker-P E30; Lumophon, Bruckner & (ID = 88178) Speaker-P
Use red slider bar for more.
E30; Lumophon, Bruckner & (ID = 88176) Speaker-P
Lumophon, Bruckner &: E30 [Speaker-P] ID = 88176 695x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model E30, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1930 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: E30 - Lumophon, Bruckner & Stark,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 290 x 290 x 170 mm / 11.4 x 11.4 x 6.7 inch
Notes Sytem mit Hufeisenmagnet. Gleichstromwiderstand 1200 Ohm, Blechgehäuse mit Strukturlackierung, gehört zum 52W, gleiches Gehäuse wie beim 52WL.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

Model page created by Michael Seiffert. See "Data change" for further contributors.
