GD12

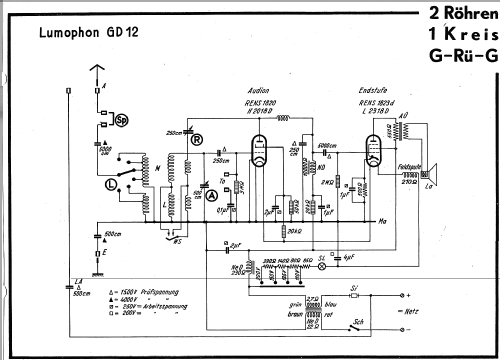

GD12; Lumophon, Bruckner & (ID = 736490) Radio

GD12; Lumophon, Bruckner & (ID = 14529) Radio

GD12; Lumophon, Bruckner & (ID = 8968) Radio

GD12; Lumophon, Bruckner & (ID = 1100389) Radio
GD12; Lumophon, Bruckner & (ID = 988956) Radio GD12; Lumophon, Bruckner & (ID = 988957) Radio
GD12; Lumophon, Bruckner & (ID = 1504176) Radio GD12; Lumophon, Bruckner & (ID = 1504178) Radio
GD12; Lumophon, Bruckner & (ID = 1504180) Radio GD12; Lumophon, Bruckner & (ID = 1504182) Radio
GD12; Lumophon, Bruckner & (ID = 1510547) Radio GD12; Lumophon, Bruckner & (ID = 1510548) Radio
GD12; Lumophon, Bruckner & (ID = 1963125) Radio
Use red slider bar for more.
GD12; Lumophon, Bruckner & (ID = 988956) Radio
Lumophon, Bruckner &: GD12 [Radio] ID = 988956 710x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model GD12, Lumophon, Bruckner & Stark, Nürnberg:
Lumophon Werbung

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: RENS1820 RENS1823d
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: GD12 - Lumophon, Bruckner & Stark,
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
