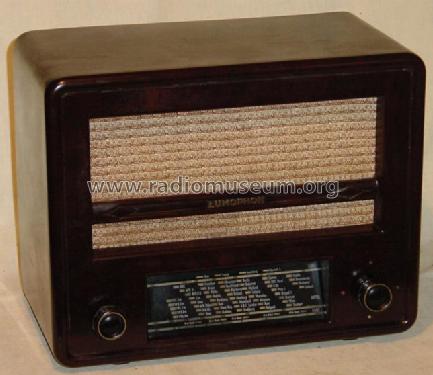

WD210; Lumophon, Bruckner & (ID = 28607) Radio
Lumophon, Bruckner &: WD210 [Radio] ID = 28607 645x558
Select picture or schematic to display from thumbnails on the right and click for download.
For model WD210, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: EF6 or EF12 EL8 or EL11
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: WD210 - Lumophon, Bruckner & Stark,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 358 x 285 x 188 mm / 14.1 x 11.2 x 7.4 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 159.00 DM
Source of data Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb

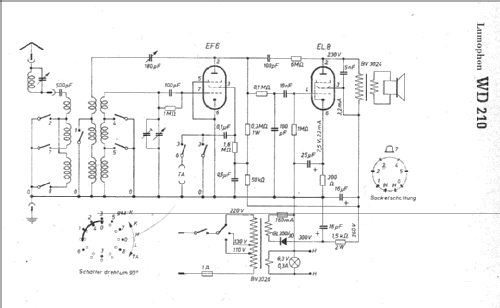

Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (4915)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Lumophon, Bruckner & Stark, Nürnberg
Here you find 300 models, 249 with images and 198 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Lumophon, Bruckner &: WD210
Threads: 1 | Posts: 1
Hits: 1576     Replies: 0
lumophon: WD210 (WD 210); Hinweis Gleichrichter
Hans-Dieter Haase † 5.2.18
17.Aug.10
  1

Wie schon mehrfach bei Lange-Nowisch gefunden:

Im hochgeladenen Schaltplan ist der Gleichrichter falsch gepolt gezeichnet.

HDH
