WD651
Use red slider bar for more.

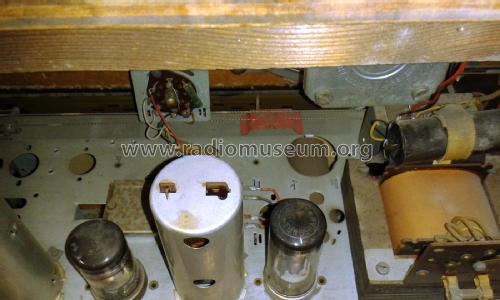

Lumophon, Bruckner &: WD651 [Radio] ID = 2438333 1296x738
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Lumeta | ||||
|---|---|---|---|---|---|
| Year: 1950 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH71 ECH71 EBL71 EM71 | ||||
| Semiconductors (the count is only for transistors) | B250C100 |
| Main principle | Superheterodyne (common); ZF/IF 473 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Ready for FM, has Broadcast, Long Wave, Short wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19.5 cm = 7.7 inch |
| Power out | |
| from Radiomuseum.org | Model: WD651 - Lumophon, Bruckner & Stark, |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 540 x 322 x 240 mm / 21.3 x 12.7 x 9.4 inch |
| Notes | Entspricht dem WD661 jedoch ohne die Bestückung für UKW (EF15+Spulensatz), jedoch ist die Skala einheitlich und enthält auch die UKW-Frequenzen für evtl. Nachrüstung. Ergänzt die ''Helden der letzten Tage' von Lumophon nach unten in der Modellreihe WD651, WD661 und WD671 - wohl auch in GW-Varianten. |
| Net weight (2.2 lb = 1 kg) | 12 kg / 26 lb 6.9 oz (26.432 lb) |
Model page created by Dietmar Herian. See "Data change" for further contributors.
