Ladegleichrichter LE220
Luo, Akkumulatorenfabrik; Berlin
- Country
- Germany
- Manufacturer / Brand
- Luo, Akkumulatorenfabrik; Berlin
- Year
- 1928 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 160397
-
- Brand: Limann und Oberlaender

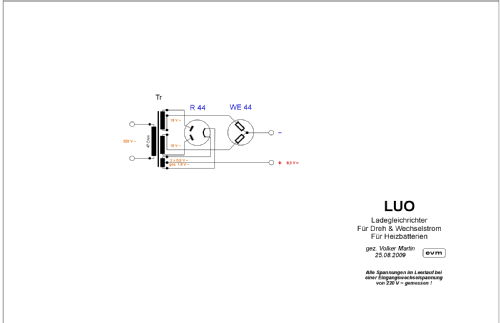

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- R44 WE44_Rectron
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Ladegleichrichter LE220 - Luo, Akkumulatorenfabrik;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 170 x 110 x 150 mm / 6.7 x 4.3 x 5.9 inch
- Notes
- Lade-Gleichrichter für Heiz-Batterien.
Ca. 1,3A bei 1...4 Zellen.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Price in first year of sale
- 33.00 RM
- Author
- Model page created by Volker MARTIN. See "Data change" for further contributors.
