Capacitance Meter DM-6023

Capacitance Meter DM-6023; Lutron; Taipei (ID = 2304920) Equipment Capacitance Meter DM-6023; Lutron; Taipei (ID = 2304921) Equipment
Use red slider bar for more.

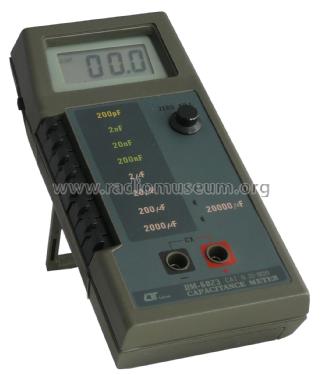

Capacitance Meter DM-6023; Lutron; Taipei (ID = 2304920) Equipment
Lutron; Taipei: Capacitance Meter DM-6023 [Equipment] ID = 2304920 1400x1606
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capacitance Meter DM-6023, Lutron; Taipei

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Lutron; Taipei
Year: 1988 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Capacitance Meter DM-6023 - Lutron; Taipei
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 87 x 178 x 45 mm / 3.4 x 7 x 1.8 inch
Notes
  • 3.5 digit display
  • 9 measuring ranges (0 - 20000 µF)
  • With protection against charged capacitors (up to 50 V))
  • Made in Taiwan
Net weight (2.2 lb = 1 kg) 0.345 kg / 0 lb 12.2 oz (0.76 lb)

Model page created by Hendrik van Hooijdonk. See "Data change" for further contributors.
