• Model: Digital Clamp Meter DM-6055 /C /F [late 8 x IC] - Lutron; Taipei

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 70 x 237 x 36 mm / 2.8 x 9.3 x 1.4 inch

• Notes

• Lutron Electronic Enterprise Co., Ltd., Digital Clamp Meter DM-6055

  3½ digit 0.5" LCD display with data hold (max. indication 1999)

  Measurement:

  • V_AC: 200 - 600 V
  • V_DC: 200 - 600 V
  • R: 2000 Ω
  • A: 200; 1000A AC/DC
  • Temp:
    • /C: -40 - +750 ºC with Thermocouple K type TP01 or TP02A
    • /F: -40 -  +1400 ºF with Thermocouple K type TP03 or TP04

  See also DM-6055 (6 x IC) and DM-6055 (7 x IC)

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

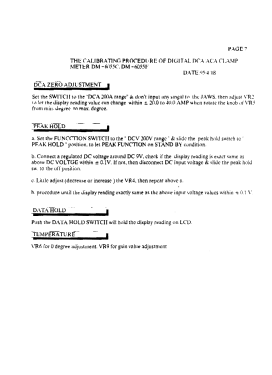

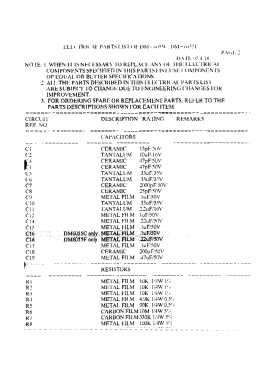

• Literature/Schematics (1)

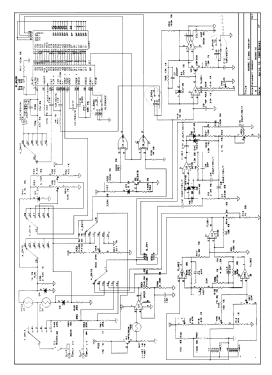

• -- Schematic
