L-190

L-190; Luxman, Lux Corp.; (ID = 1563403) Ampl/Mixer L-190; Luxman, Lux Corp.; (ID = 585163) Ampl/Mixer
L-190; Luxman, Lux Corp.; (ID = 1563397) Ampl/Mixer L-190; Luxman, Lux Corp.; (ID = 1563398) Ampl/Mixer
L-190; Luxman, Lux Corp.; (ID = 1563399) Ampl/Mixer L-190; Luxman, Lux Corp.; (ID = 1563400) Ampl/Mixer
L-190; Luxman, Lux Corp.; (ID = 1563401) Ampl/Mixer L-190; Luxman, Lux Corp.; (ID = 1563402) Ampl/Mixer
L-190; Luxman, Lux Corp.; (ID = 1563404) Ampl/Mixer L-190; Luxman, Lux Corp.; (ID = 1563405) Ampl/Mixer
Use red slider bar for more.

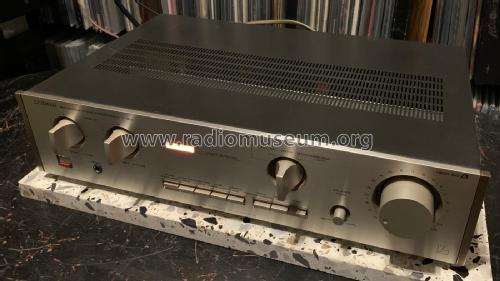

L-190; Luxman, Lux Corp.; (ID = 1563403) Ampl/Mixer
Luxman, Lux Corp.;: L-190 [Ampl/Mixer] ID = 1563403 933x424
Select picture or schematic to display from thumbnails on the right and click for download.
For model L-190, Luxman, Lux Corp.; Kinsuido of Osaka

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1984 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (unknown quality)
from Radiomuseum.org Model: L-190 - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 453 x 111 x 317 mm / 17.8 x 4.4 x 12.5 inch
Notes

Stereo-Vollverstärker mit 2 x 40 Watt Sinus an 4 Ohm.
5 Eingänge, 2 x Tape Out, 2 LS-Paare, nicht getrennt schaltbar, Kopfhöreranschluss.
Loudness, High- und Low-Filter.

 Endstufentransistoren: 2 x 2SC 3180N und 2 x 2SA 1263N.

Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Price in first year of sale 499.00 DM
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
